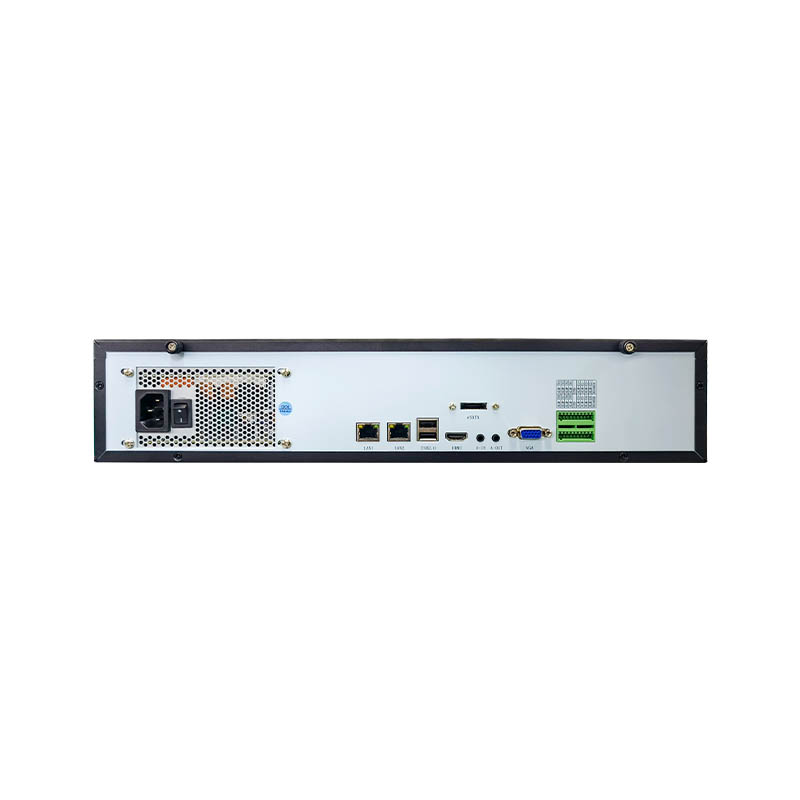

NVR

VK6409G
Standard products and customization

Contact

Features
Technical Indicators
Overall Dimension

Support 36CH/64CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/720P/960H/DI/CIF IP input Support H.265+/H.265/H.264 compression format Support 1 CH audio input and 1 CH audio output Support 8 CH alarm input and 4 CH alarm output Support face capture and comparison Graphical interface, Windows operation style, full mouse control, easy to operate Video Recording: Multiple recording modes, including manual recording, timed recording, motion detection recording, sensor alarm recording, etc. Playback: support 16 channels display Search：Search By time slicing, by time, by event, by tag search, intelligent search Support smart IPC human detection, area intrusion,line-crossing,absent detection,video abnormal detection,face detection...etc intelligent detection input and linkage Backup: network backup,USB backup,portable HDD Support DHCP、DDNS、PPPoE、IE and CMS central management Network function:remote surveillance,remote playback,remote PTZ control,OSD setting Supports dual-stream technology, enabling local high-definition storage, remote network transmission, and monitoring on mobile devices. Support multiple users to simultaneously log in and view Support user management, log query, and device status query Support APP for iOS, Andriod cellphone
System Model No VK3609G VK6409G Operation System Embedded LINUX CPU RK3568 RK35668 Video Video Input 36 CH 64 CH Resolution 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF Compression Format H.265+/H.265/H.264 H.265+/H.265/H.264 Bandwidth Input 512Mbps Input 512 Mbps HDMI/VGA Output HDMI 1-ch, 3840×2160,1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800 VGA 1-ch, 1920×1080, 1440×900, 1366×768, 1280×800, 1280×720, 1024×768 HDMI 1-ch, 3840×2160,1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800 VGA 1-ch, 1920×1080, 1440×900, 1366×768, 1280×800, 1280×720, 1024×768 Split 1/4/6/10/16/25/32/36 1/4/6/9/16/25/32/36/64 Audio Input 1x RCA 1x RCA Output 1x RCA 1x RCA Compression Format G.711(U/A)/G726/AAC G.711(U/A)/G726/AAC Video Resolution 8MP/6MP/5MP/4MP/3MP/1080P/720P/D1 8MP/6MP/5MP/4MP/3MP/1080P/720P/D1 Frame N:30fps, P: 25fps Playback Playback channel 16 CH 16 CH retrieval mode Search by time slice, by time, by event, or by tag Search by time slice, by time, by event, or by tag Smart Search It does not display the video of a certain channel during a specific period of time using the same color code. Different colors are used to represent. It does not display the video of a certain channel during a specific period of time using the same color code. Different colors are used to represent. Playback Function Replay, pause, fast forward, fast rewind, previous frame, next frame, electronic magnification, etc. Replay, pause, fast forward, fast rewind, previous frame, next frame, electronic magnification, etc. Decoding Preview capability 2x8MP, 2x6MP, 3x5MP, 4x4MP, 5x3MP, 8x1080P, 12x720P, 15x4CIF 2x8MP, 2x6MP, 3x5MP, 4x4MP, 5x3MP, 8x1080P, 12x720P, 15x4CIF Synchronous playback 2x8MP, 2x6MP, 3x5MP, 4x4MP, 5x3MP, 8x1080P, 12x720P, 15x4CIF 2x8MP, 2x6MP, 3x5MP, 4x4MP, 5x3MP, 8x1080P, 12x720P, 15x4CIF Alarm Style Manual alarm, sensor alarm, motion detection alarm, abnormal alarm, intelligent event alarm, etc. Input 8 CH 8 CH Output 4 CH 4 CH Trigger Video, screenshots, preset, emails, etc. Network Port RJ 45 10M/100M/1000Mbps adaptive ethernet port ×2 Protocol TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, RTMP, ONVIF ONVIF (PROFILE S/T/G) Network video access/transmission bandwidth Input 512Mbps Number of client connections 10 pcs Smart Event （Human/Vehicle /Non-Motor Vehicle） Human Detection Support Absent Alarm Support Area Intrusion Support Line-Crossing Alarm Support Face Front-end detection channel number 2 CH 2 CH Back-end detection channel number 2 CH 2 CH Comparative ability 18 pcs/S 18 pcs/s Target library grouping 32 32 Face database 5000-10000 pcs 5000-10000 pcs Face Search Search pictures by picture Search pictures by picture Target library Management Support to add, modify,delete and inquiry face Support to add, modify,delete and inquiry face Import Method APP、WEB、local import、external import by memory disk APP、WEB、local import、external import by memory disk Comparison Alarm Support whitelist comparison, stranger comparison, and black/white list comparison Support whitelist comparison, stranger comparison, and black/white list comparison Track Support trajectory maps Support trajectory maps Information Statistics Chart Column diagram Column diagram Information Statistics Mode Support statistics by day, week, month, quarter, and custom time period. Support statistics by day, week, month, quarter, and custom time period. APP Cellphone iOS、Andriod iOS、Andriod Storage SATA port 9HDD (16TB) 9HDD (16TB) Capacity（Max） 16TB ( recommend to use 8 TB) 16TB ( recommend to use 8 TB) Backup Local Backup Support Memory disk and USB portable HDD Network Backup Support Port USB Interface 3X USB2.0 RS-485 Full duplex Full duplex Others Working Environment (-10°C~55°C, 10%~90% RH) (-10°C~55°C, 10%~90% RH) Power Supply AC100-240V 250W (depend on HDD capacity) AC100-240V 250W (depend on HDD capacity) Power Consumption ≤160W (without HDD) ≤160W (without HDD)

Get the latest price? We will respond as soon as possible (within 12 hours)

System	Model No	VK3609G	VK6409G
	Operation System	Embedded LINUX
	CPU	RK3568	RK35668
Video	Video Input	36 CH	64 CH
	Resolution	8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF	8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF
	Compression Format	H.265+/H.265/H.264	H.265+/H.265/H.264
	Bandwidth	Input 512Mbps	Input 512 Mbps
	HDMI/VGA Output	HDMI 1-ch, 3840×2160,1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800 VGA 1-ch, 1920×1080, 1440×900, 1366×768, 1280×800, 1280×720, 1024×768	HDMI 1-ch, 3840×2160,1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800 VGA 1-ch, 1920×1080, 1440×900, 1366×768, 1280×800, 1280×720, 1024×768
	Split	1/4/6/10/16/25/32/36	1/4/6/9/16/25/32/36/64
Audio	Input	1x RCA	1x RCA
	Output	1x RCA	1x RCA
	Compression Format	G.711(U/A)/G726/AAC	G.711(U/A)/G726/AAC
Video	Resolution	8MP/6MP/5MP/4MP/3MP/1080P/720P/D1	8MP/6MP/5MP/4MP/3MP/1080P/720P/D1
Video	Frame	N:30fps, P: 25fps
Playback	Playback channel	16 CH	16 CH
	retrieval mode	Search by time slice, by time, by event, or by tag	Search by time slice, by time, by event, or by tag
	Smart Search	It does not display the video of a certain channel during a specific period of time using the same color code. Different colors are used to represent.	It does not display the video of a certain channel during a specific period of time using the same color code. Different colors are used to represent.
	Playback Function	Replay, pause, fast forward, fast rewind, previous frame, next frame, electronic magnification, etc.	Replay, pause, fast forward, fast rewind, previous frame, next frame, electronic magnification, etc.
Decoding	Preview capability	2x8MP, 2x6MP, 3x5MP, 4x4MP, 5x3MP, 8x1080P, 12x720P, 15x4CIF	2x8MP, 2x6MP, 3x5MP, 4x4MP, 5x3MP, 8x1080P, 12x720P, 15x4CIF
Decoding	Synchronous playback	2x8MP, 2x6MP, 3x5MP, 4x4MP, 5x3MP, 8x1080P, 12x720P, 15x4CIF	2x8MP, 2x6MP, 3x5MP, 4x4MP, 5x3MP, 8x1080P, 12x720P, 15x4CIF
Alarm	Style	Manual alarm, sensor alarm, motion detection alarm, abnormal alarm, intelligent event alarm, etc.
	Input	8 CH	8 CH
	Output	4 CH	4 CH
	Trigger	Video, screenshots, preset, emails, etc.
Network	Port	RJ 45 10M/100M/1000Mbps adaptive ethernet port ×2
	Protocol	TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, RTMP,
	ONVIF	ONVIF (PROFILE S/T/G)
	Network video access/transmission bandwidth	Input 512Mbps
	Number of client connections	10 pcs
Smart Event （Human/Vehicle /Non-Motor Vehicle）	Human Detection	Support
	Absent Alarm	Support
	Area Intrusion	Support
	Line-Crossing Alarm	Support
Face	Front-end detection channel number	2 CH	2 CH
	Back-end detection channel number	2 CH	2 CH
	Comparative ability	18 pcs/S	18 pcs/s
	Target library grouping	32	32
	Face database	5000-10000 pcs	5000-10000 pcs
	Face Search	Search pictures by picture	Search pictures by picture
	Target library Management	Support to add, modify,delete and inquiry face	Support to add, modify,delete and inquiry face
	Import Method	APP、WEB、local import、external import by memory disk	APP、WEB、local import、external import by memory disk
	Comparison Alarm	Support whitelist comparison, stranger comparison, and black/white list comparison	Support whitelist comparison, stranger comparison, and black/white list comparison
	Track	Support trajectory maps	Support trajectory maps
	Information Statistics Chart	Column diagram	Column diagram
	Information Statistics Mode	Support statistics by day, week, month, quarter, and custom time period.	Support statistics by day, week, month, quarter, and custom time period.
APP	Cellphone	iOS、Andriod	iOS、Andriod
Storage	SATA port	9HDD (16TB)	9HDD (16TB)
Storage	Capacity（Max）	16TB ( recommend to use 8 TB)	16TB ( recommend to use 8 TB)
Backup	Local Backup	Support Memory disk and USB portable HDD
Backup	Network Backup	Support
Port	USB Interface	3X USB2.0
Port	RS-485	Full duplex	Full duplex
Others	Working Environment	(-10°C~55°C, 10%~90% RH)	(-10°C~55°C, 10%~90% RH)
	Power Supply	AC100-240V 250W (depend on HDD capacity)	AC100-240V 250W (depend on HDD capacity)
	Power Consumption	≤160W (without HDD)	≤160W (without HDD)
